6# Series · Airflow Mesh

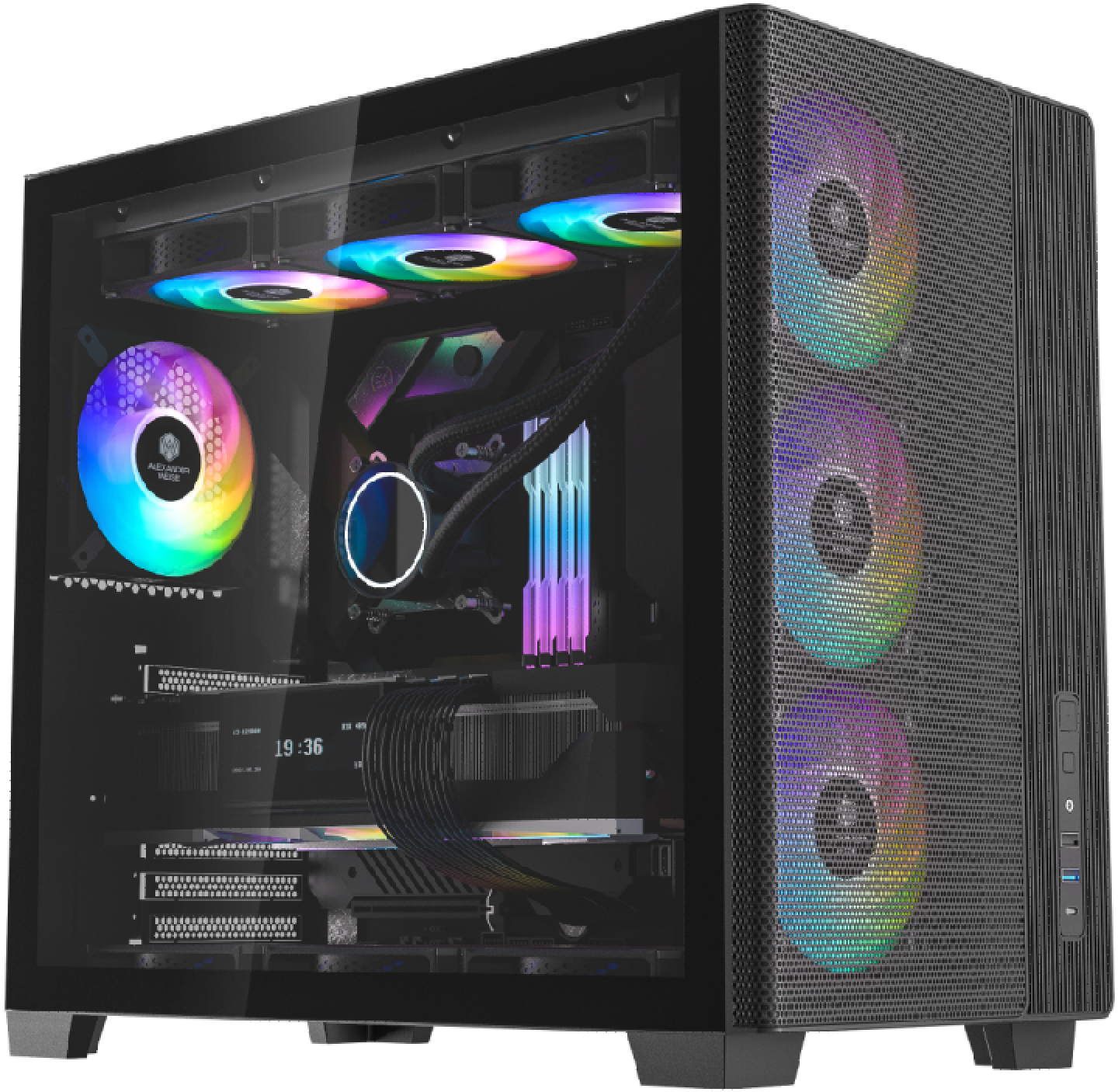

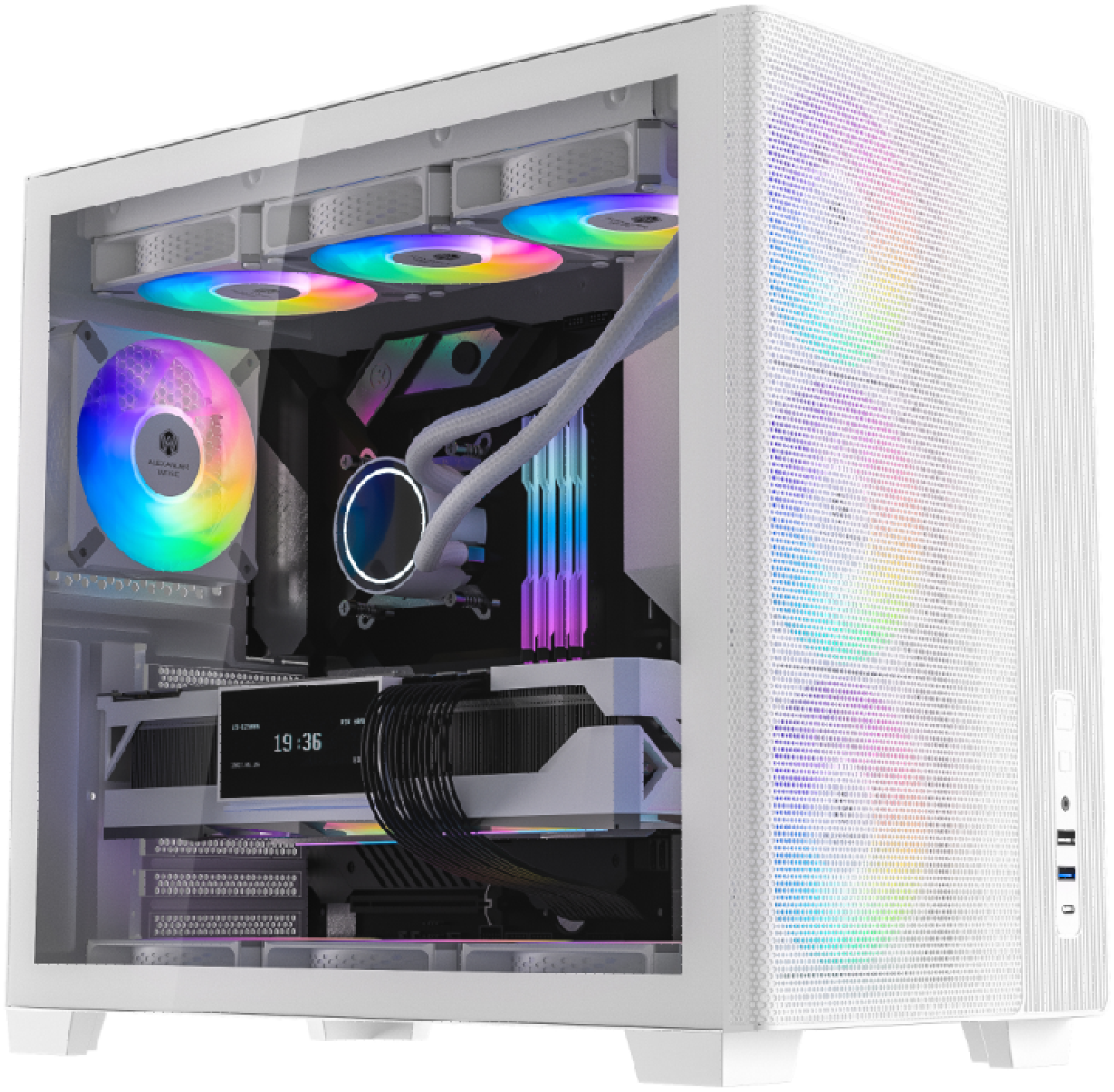

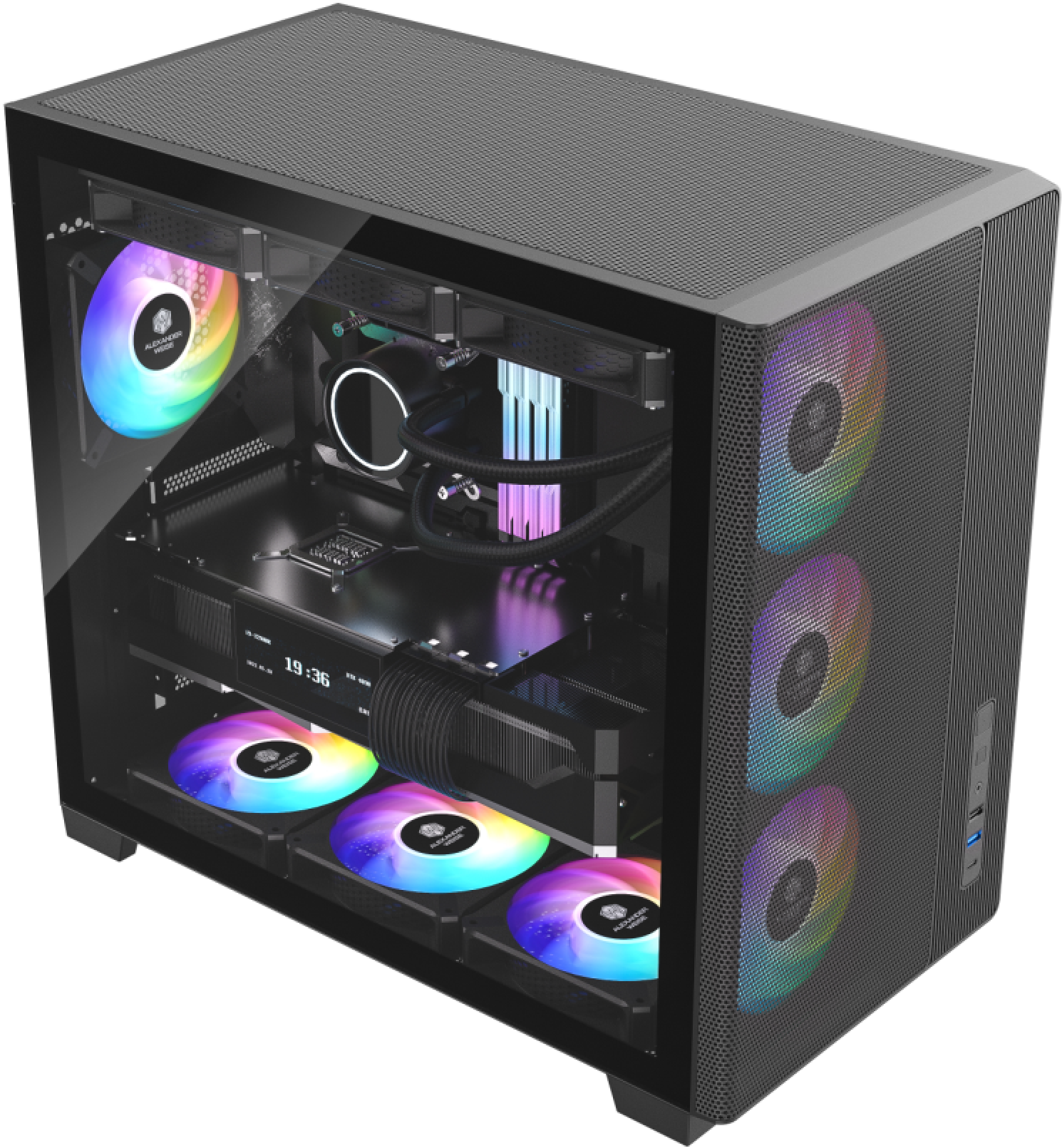

Installed components and illuminated fans shown in product images are for configuration reference and are not included unless specified in the quotation.
Full Specifications
- Case type
- Full-size airflow front-mounted PSU case
- Motherboard
- ATX / Micro-ATX / Mini-ITX
- Structure size
- 435 × 240 × 400mm
- Assembled size
- 450 × 240 × 420mm
- Material
- 0.60mm SPCC steel with black coating; 0.70mm after coating
- Panels
- ABS and iron-mesh front; screw-free tempered-glass left side; steel right side
- GPU clearance
- Up to 435mm
- CPU cooler
- Up to 180mm
- PSU support
- Front-mounted ATX / PS2, up to 160mm
- Expansion slots
- 7 standard PCI slots
- Drive bays
- 1 × 3.5in + 1 × 2.5in; or 2 × 2.5in; or 2 × 3.5in
- I/O
- 1 × USB 3.0, 1 × USB 1.1, HD Audio, Power, Reset; Type-C optional
- Fan support
- Front 3 × 120mm; rear 1 × 120mm; top 3 × 120mm; bottom 3 × 120mm
- Radiator support
- Top or bottom 240 / 360mm
- Cable routing
- 40mm rear cable-routing space
- Color options
- Black or White
- MOQ
- 500 pcs
- Packing
- 472 × 298 × 506mm K=A brown carton with foam protection; 945 pcs / 40HQ
