VM Series · Fast-Detach Glass

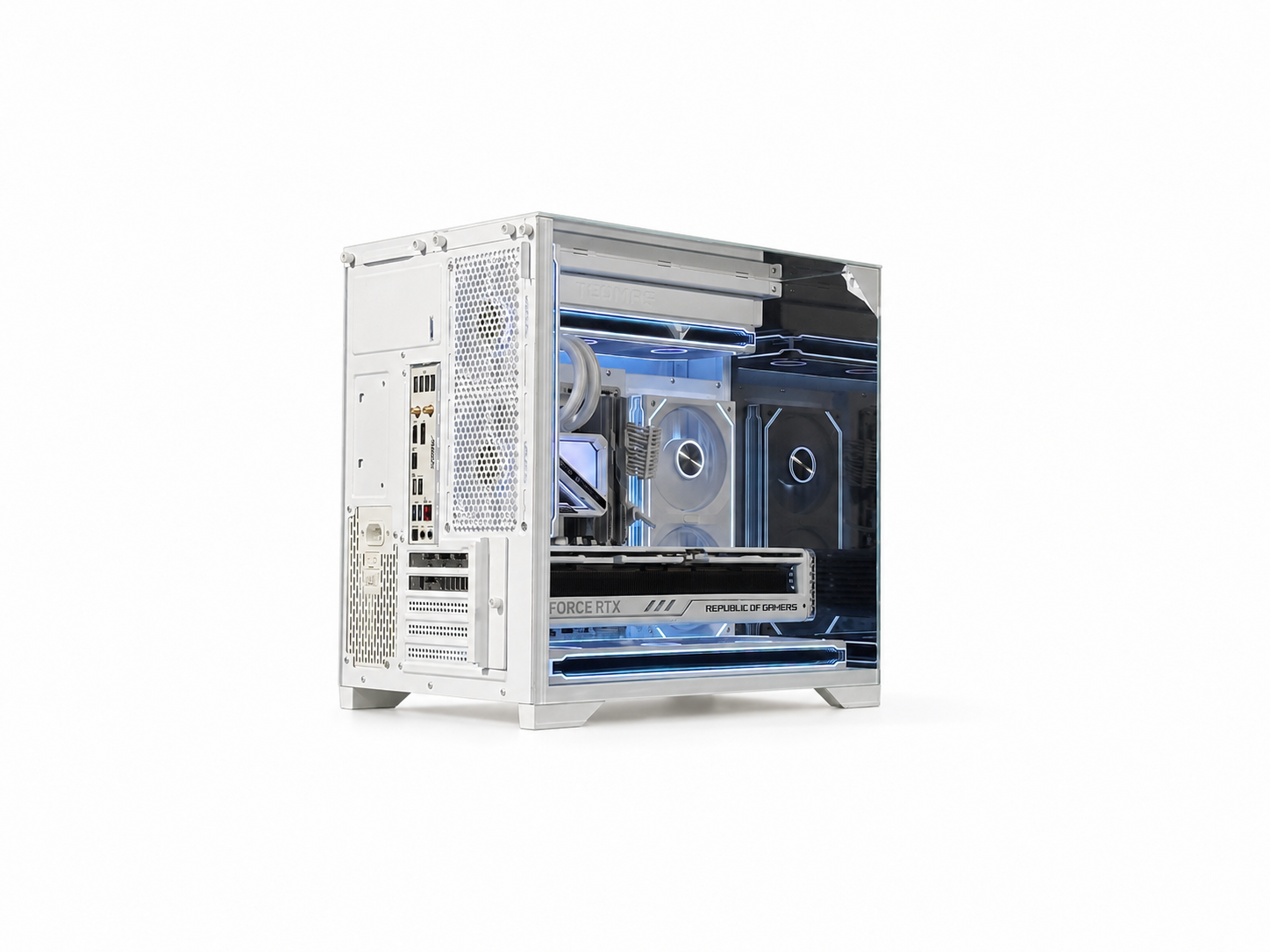

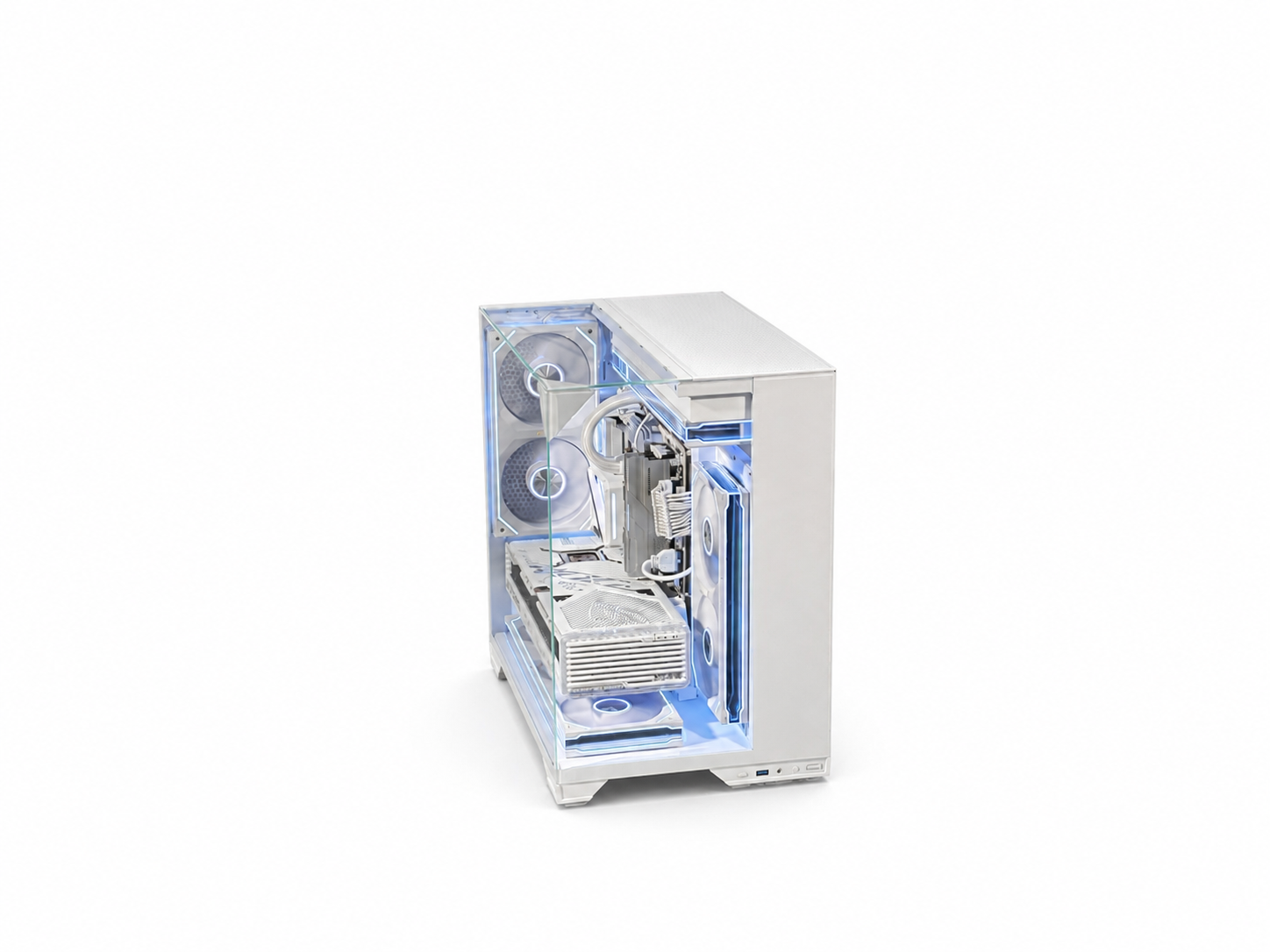

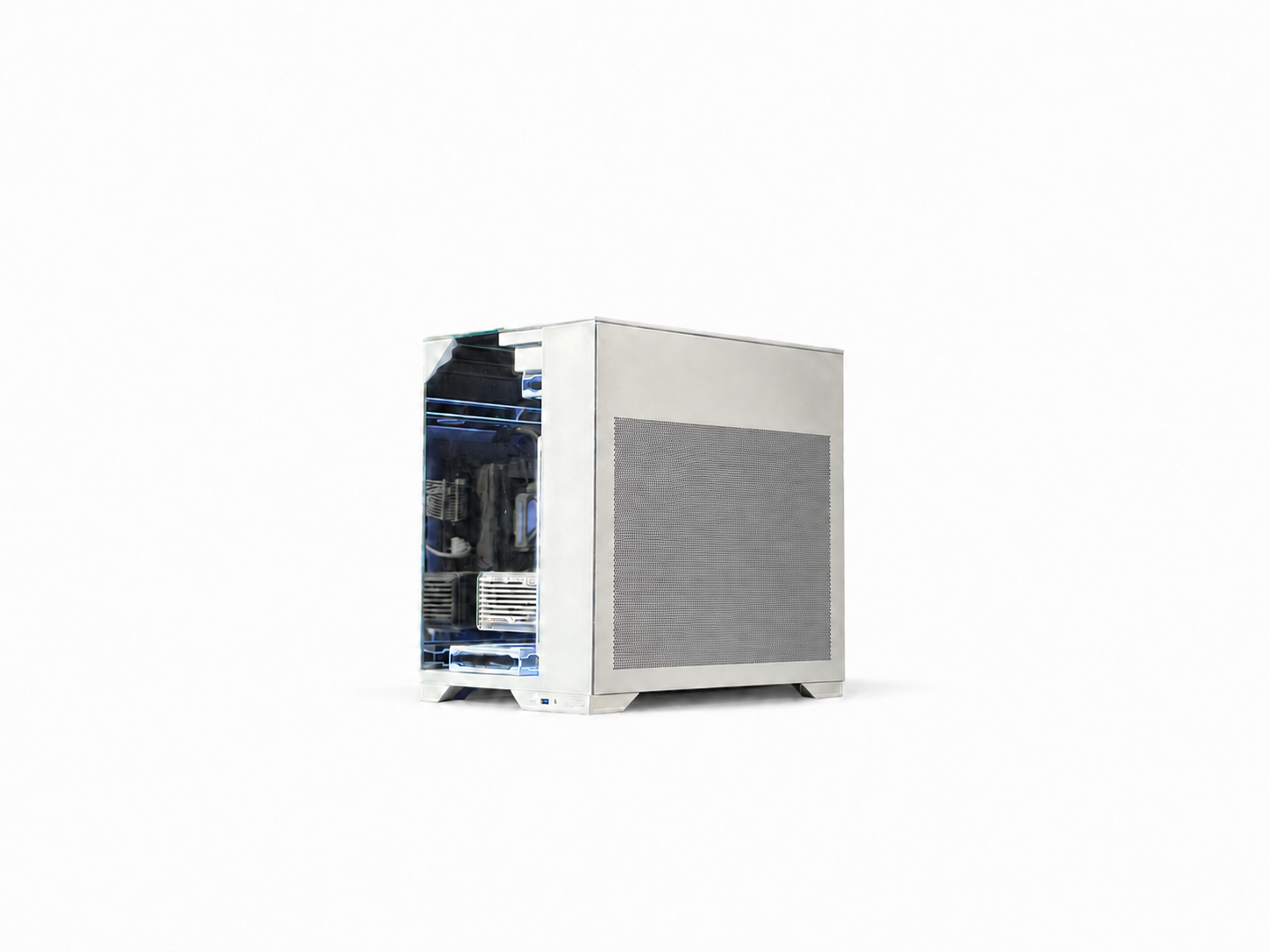

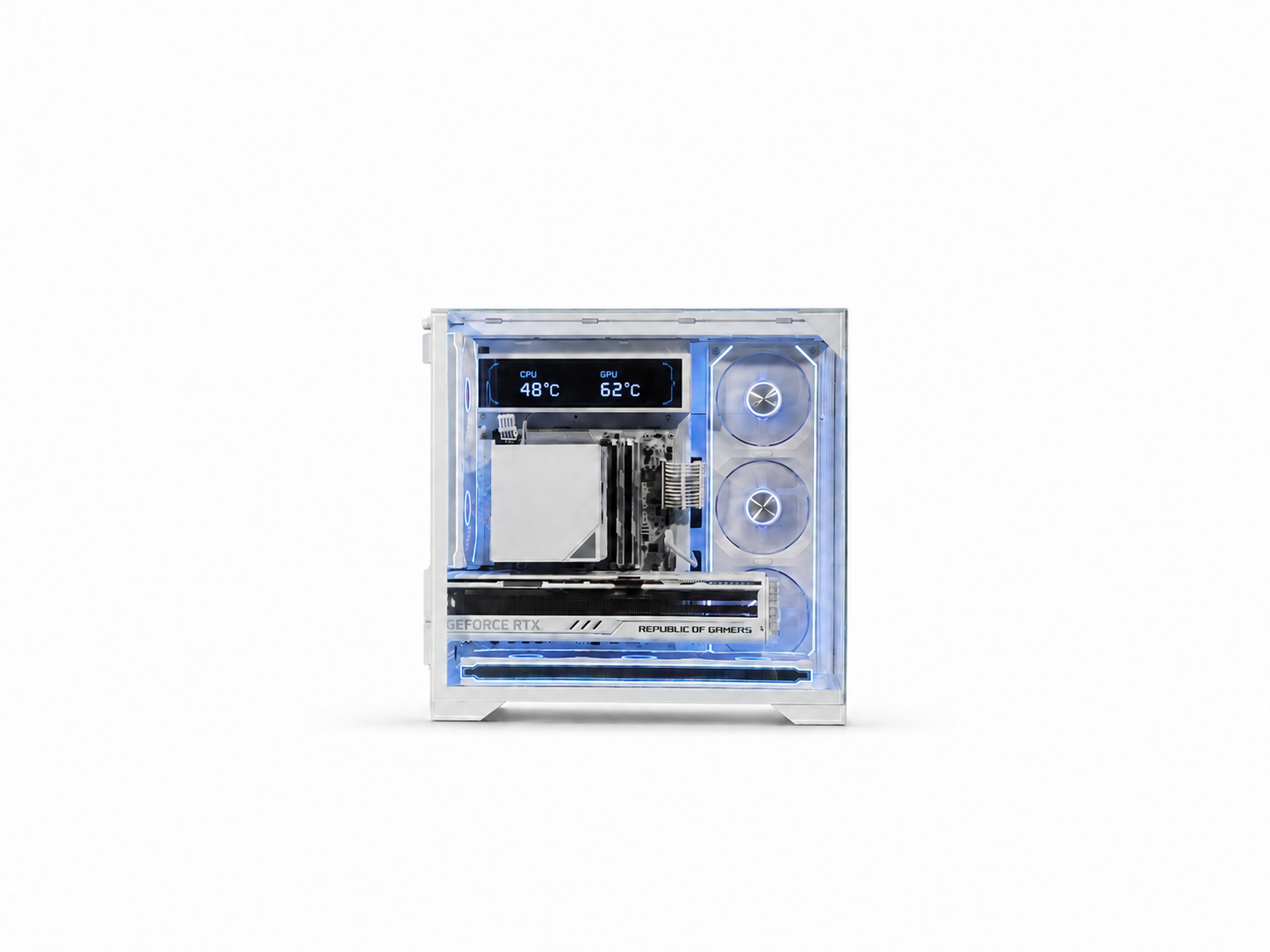

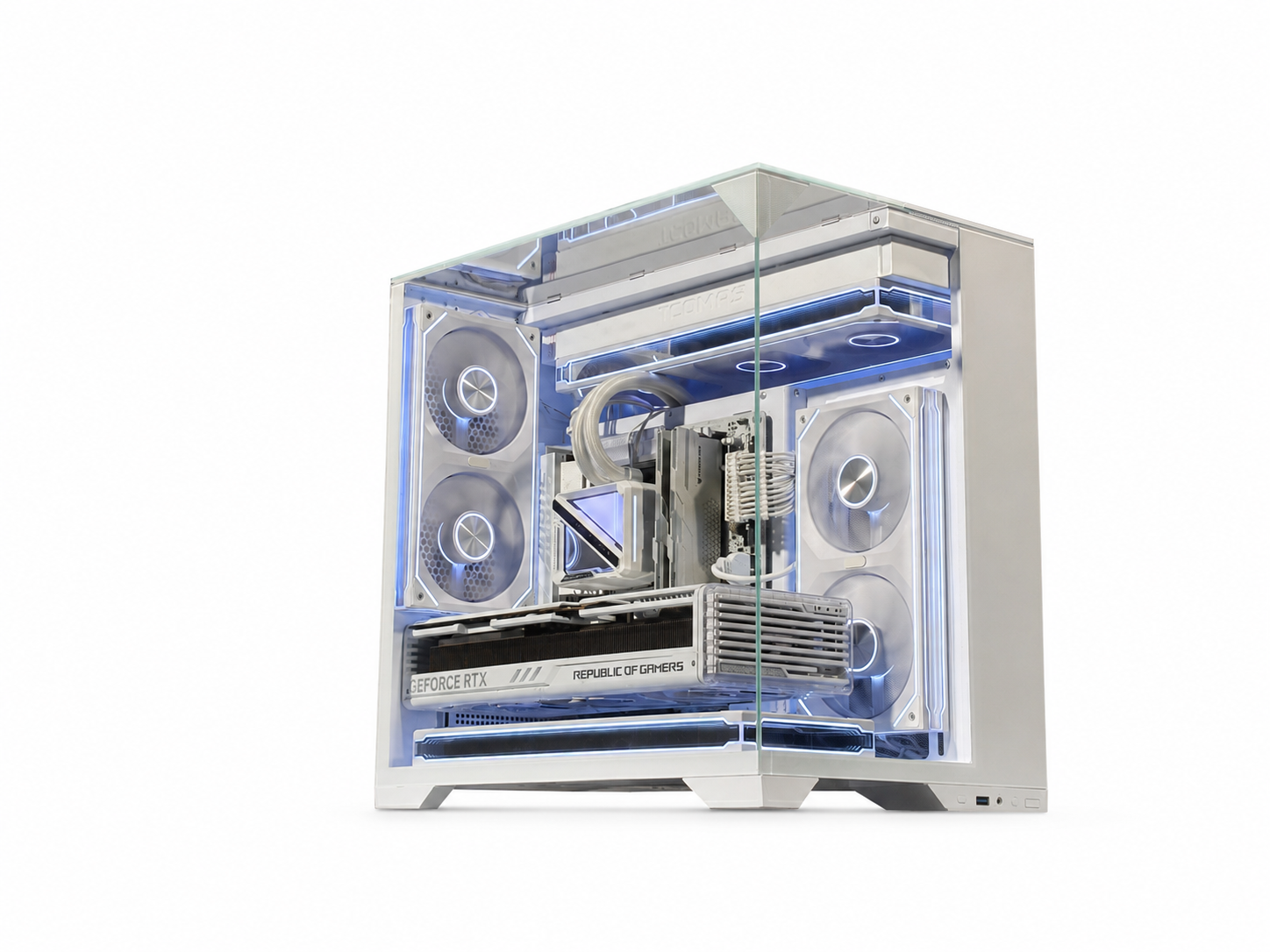

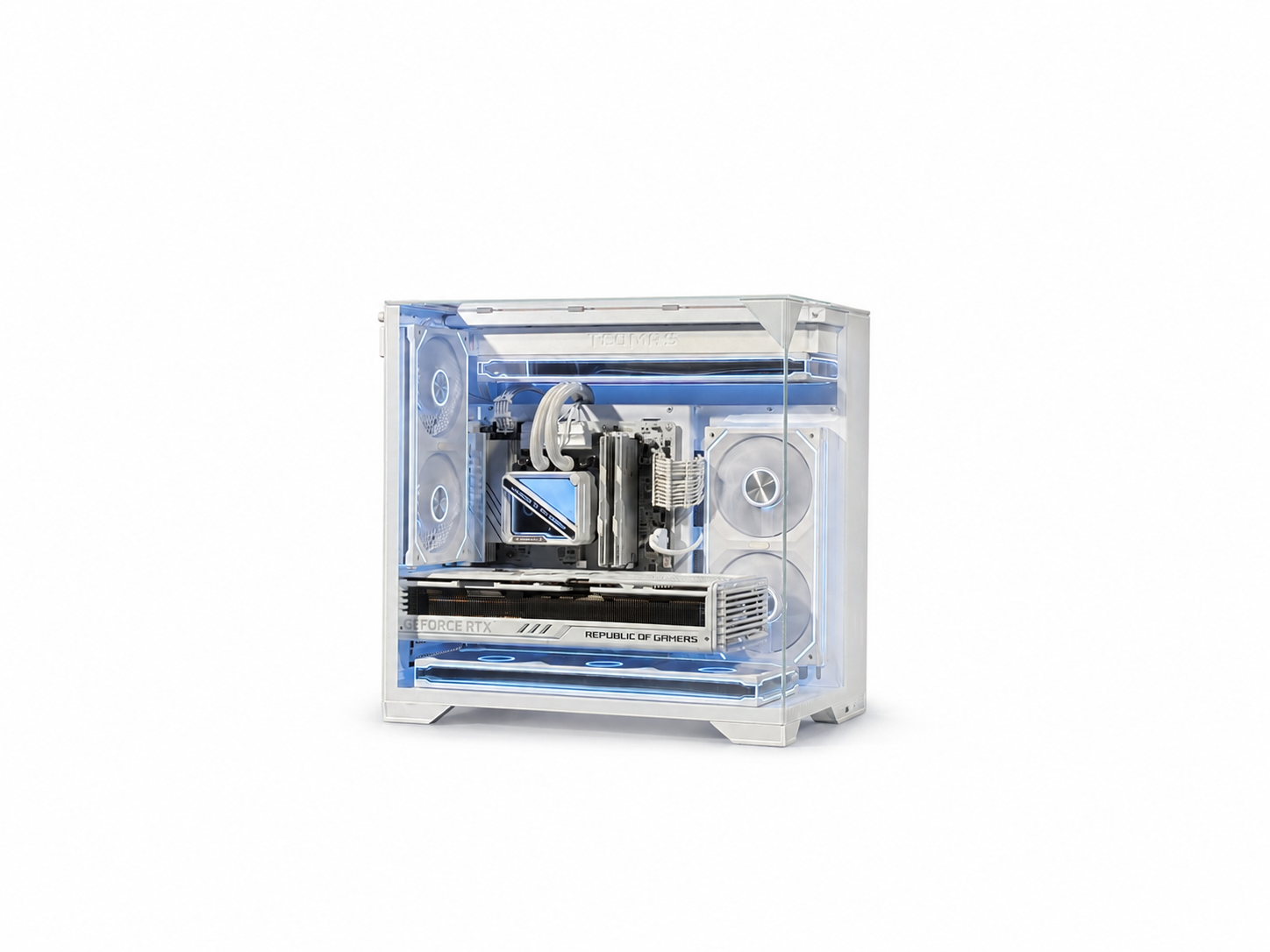

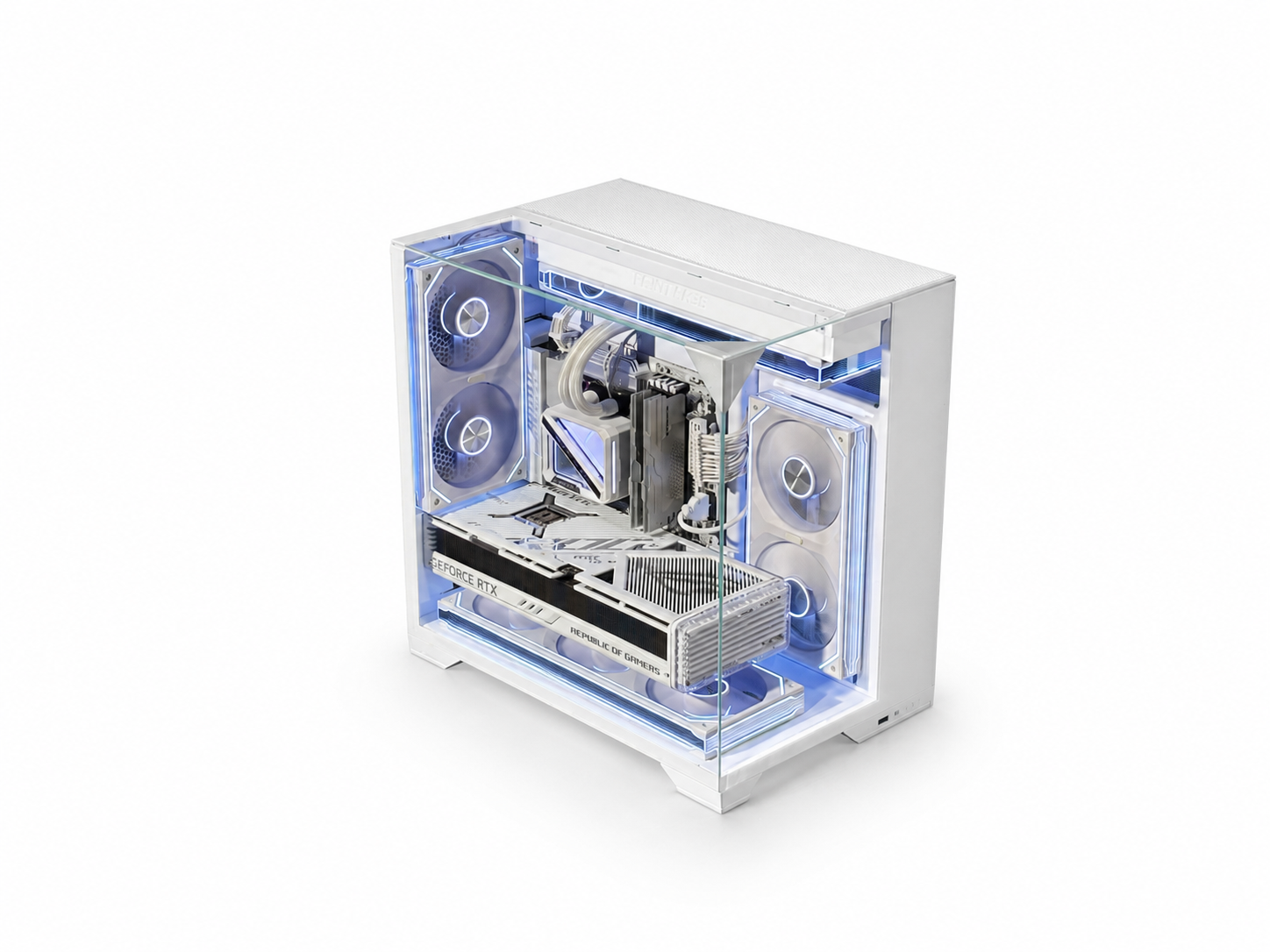

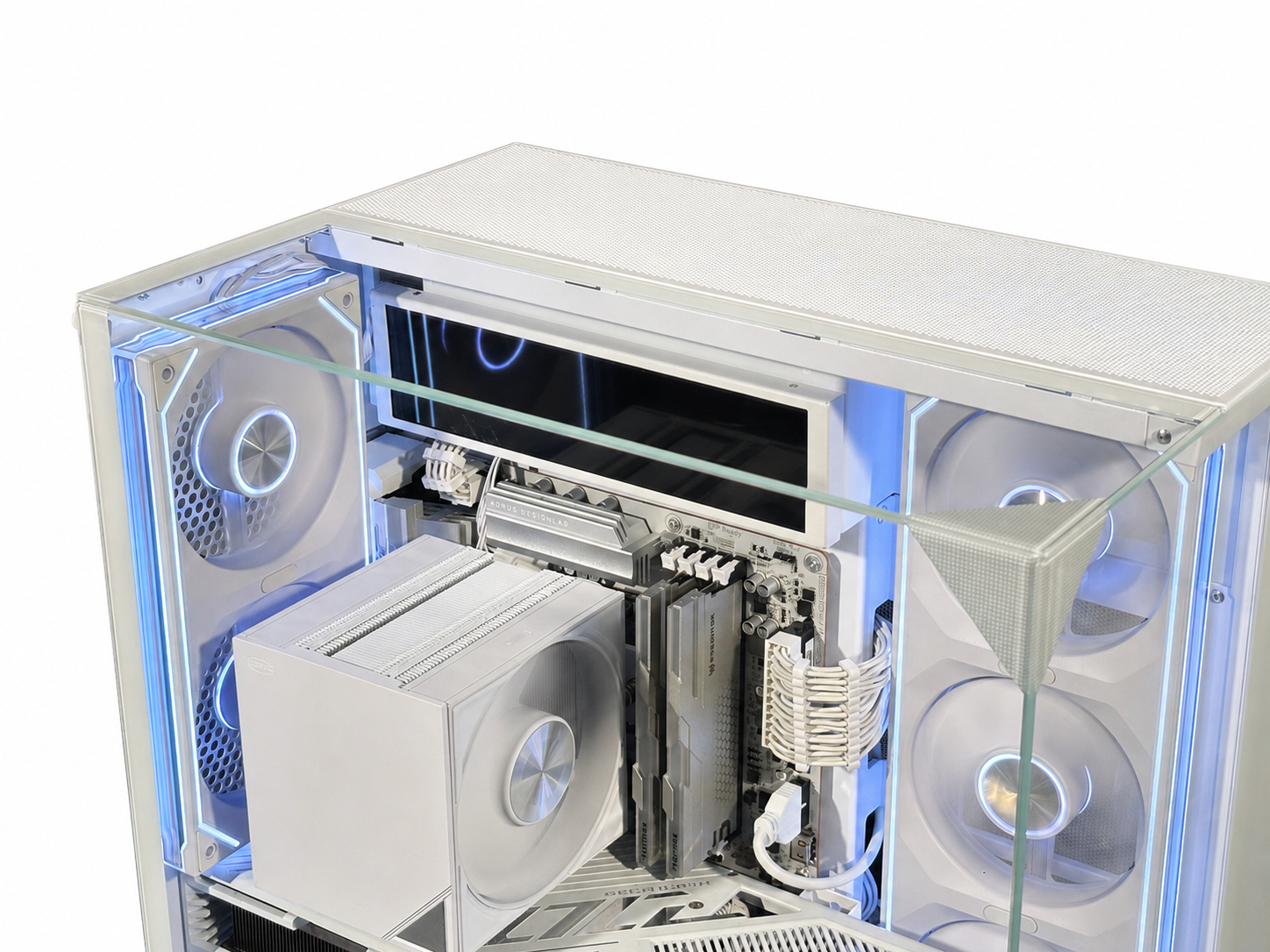

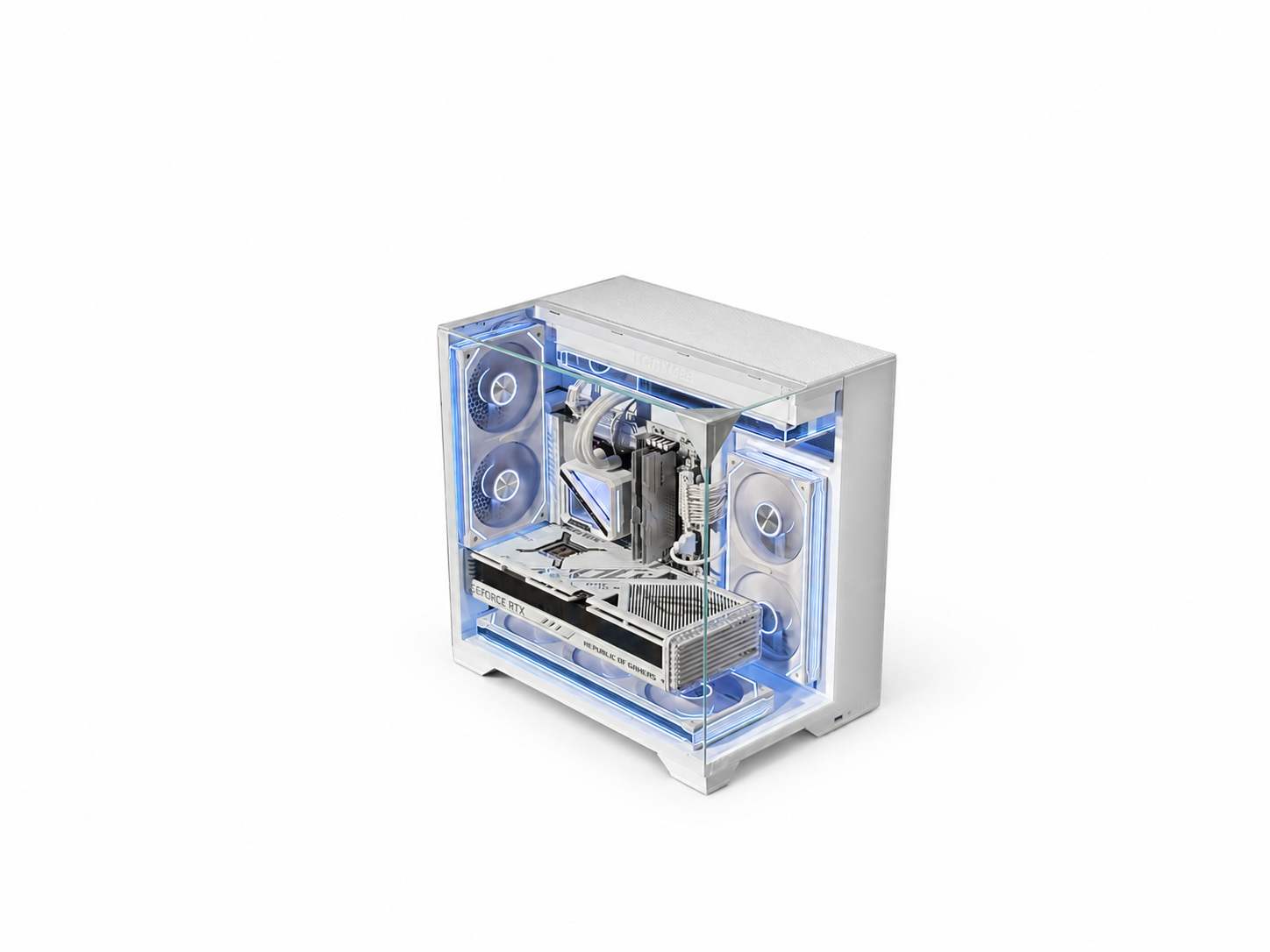

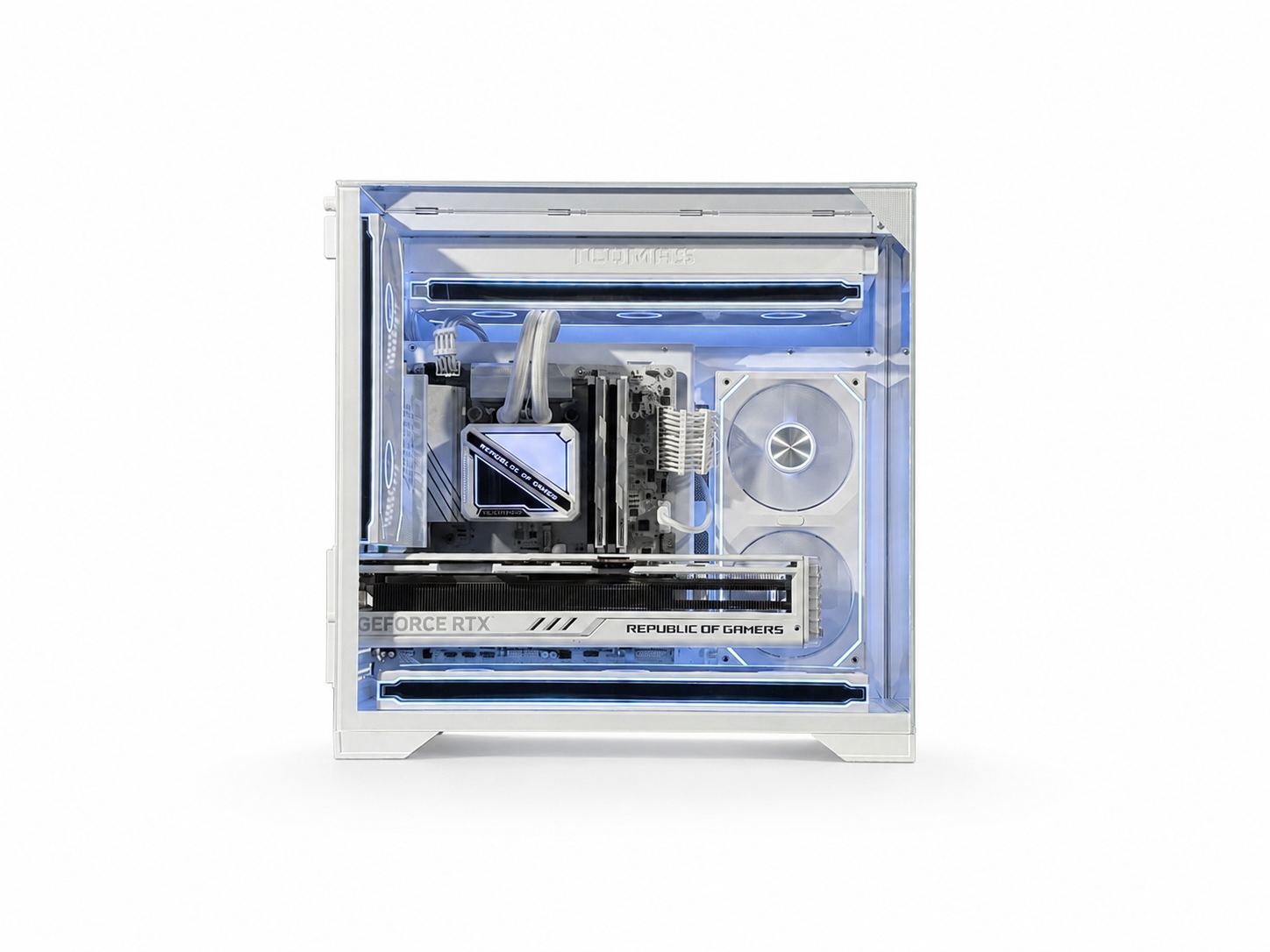

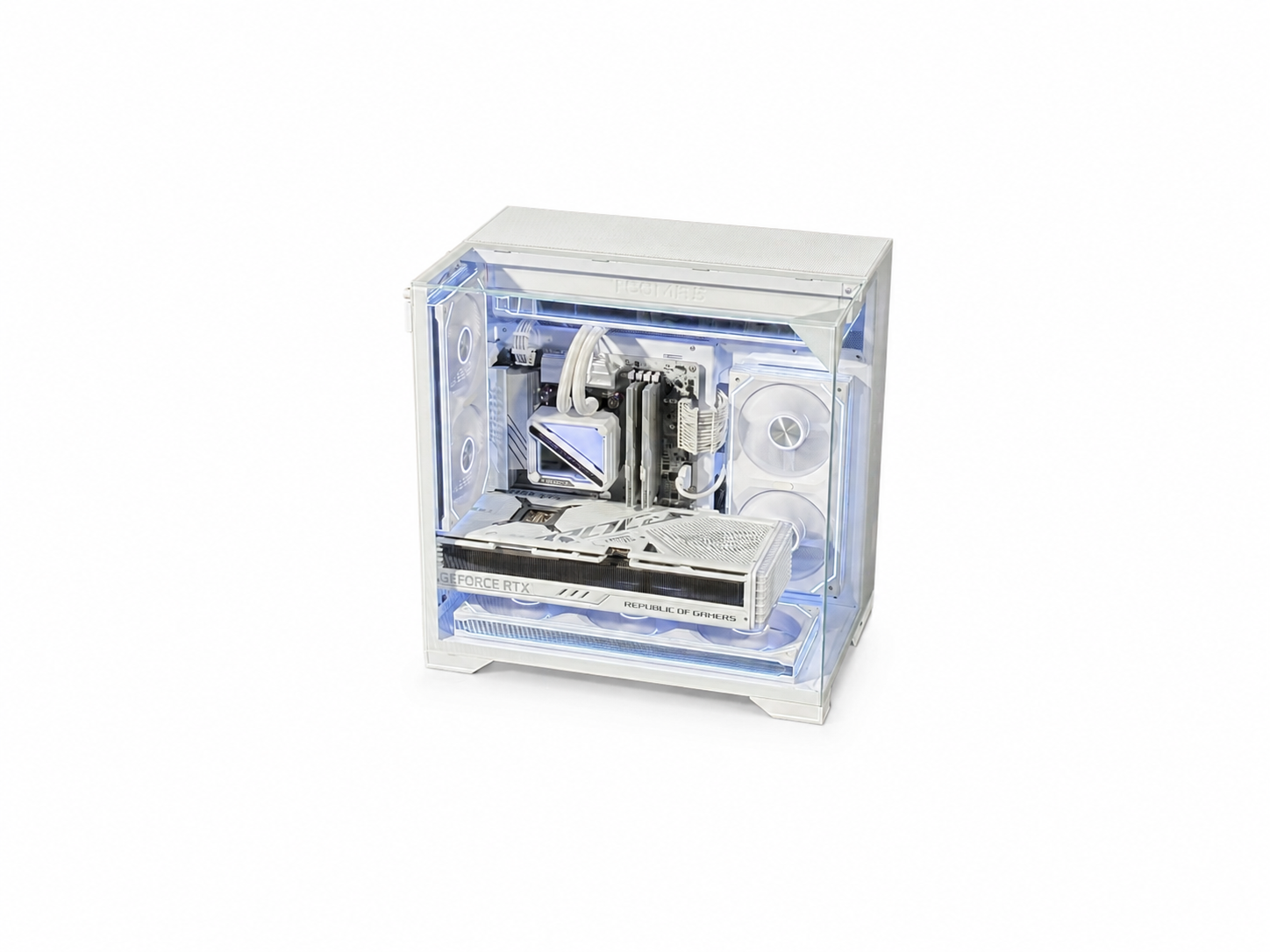

Installed components and illuminated fans shown in product images are for configuration reference and are not included unless specified in the quotation.
Full Specifications
- Case type
- Panoramic M-ATX case
- Motherboard
- Micro-ATX / Mini-ITX
- Structure size
- 425 × 285 × 403mm
- Assembled size
- 425 × 285 × 423mm
- Material
- 0.50mm SPCC side board, top cover, and bottom; 0.45mm SPCC other metal parts; black coating
- Panels
- ABS and tempered glass; fast-detach glass or metal side panel; fast-detach metal or glass top cover
- GPU clearance
- Up to 415mm
- CPU cooler
- Up to 162mm
- PSU support
- ATX up to 200mm; PS2 optional
- Expansion slots
- 5 standard PCI slots
- Drive bays
- 1 × 3.5in + 1 × 2.5in
- External bays
- None
- I/O
- 1 × USB 3.0, combined HD Audio and microphone, Power, Reset; Type-C optional
- Fan support
- Motherboard side: 2 or 3 × 120mm; rear: 2 × 120mm; top: 3 × 120mm; bottom: 3 × 120mm
- Radiator support
- Top 240 / 360mm
- Cable routing
- 90mm rear cable-routing space
- Color options
- Black or full White
- MOQ
- 500 pcs
- Packing
- 484 × 350 × 496mm K=K brown carton with foam protection; 810 pcs / 40HQ
