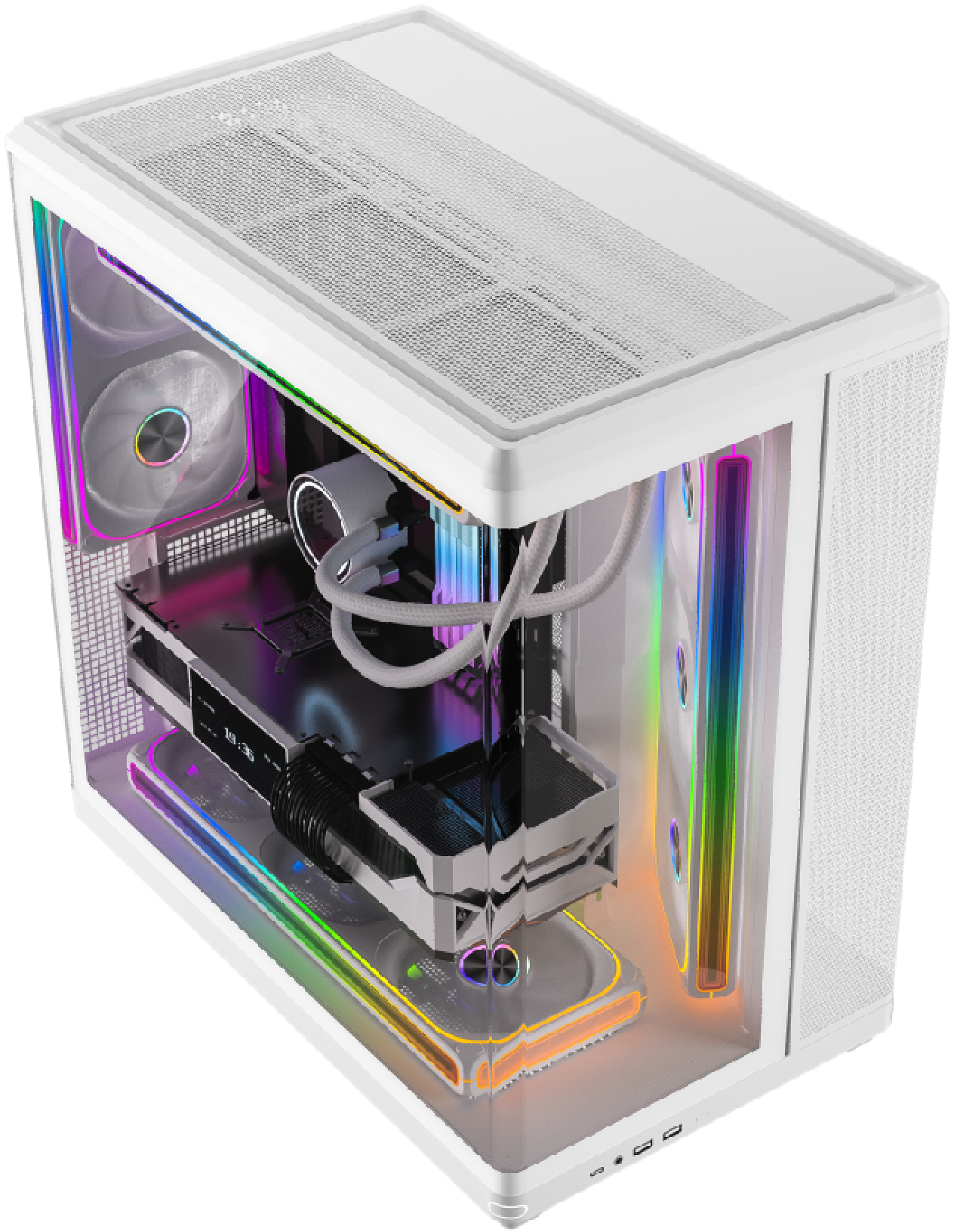

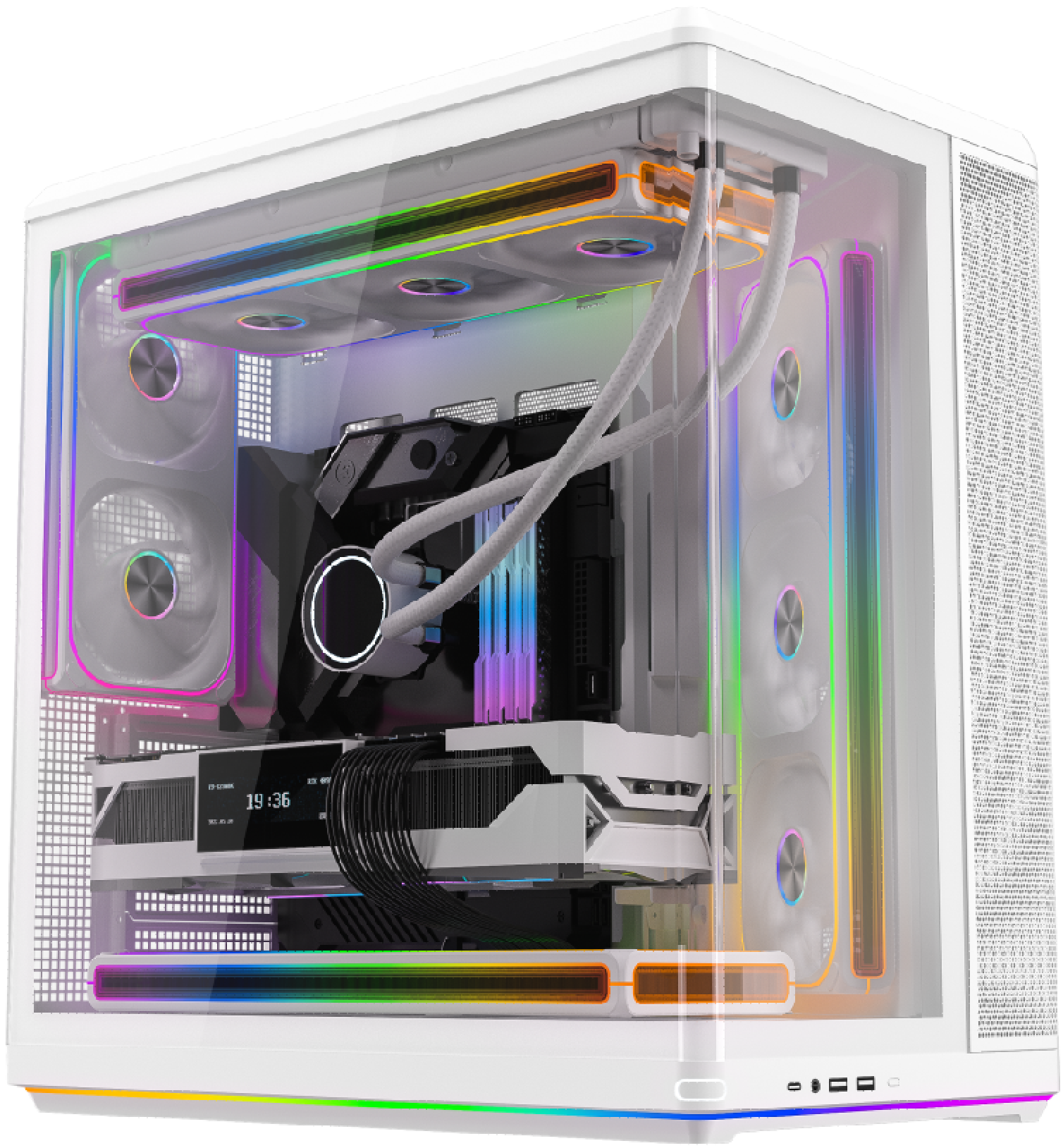

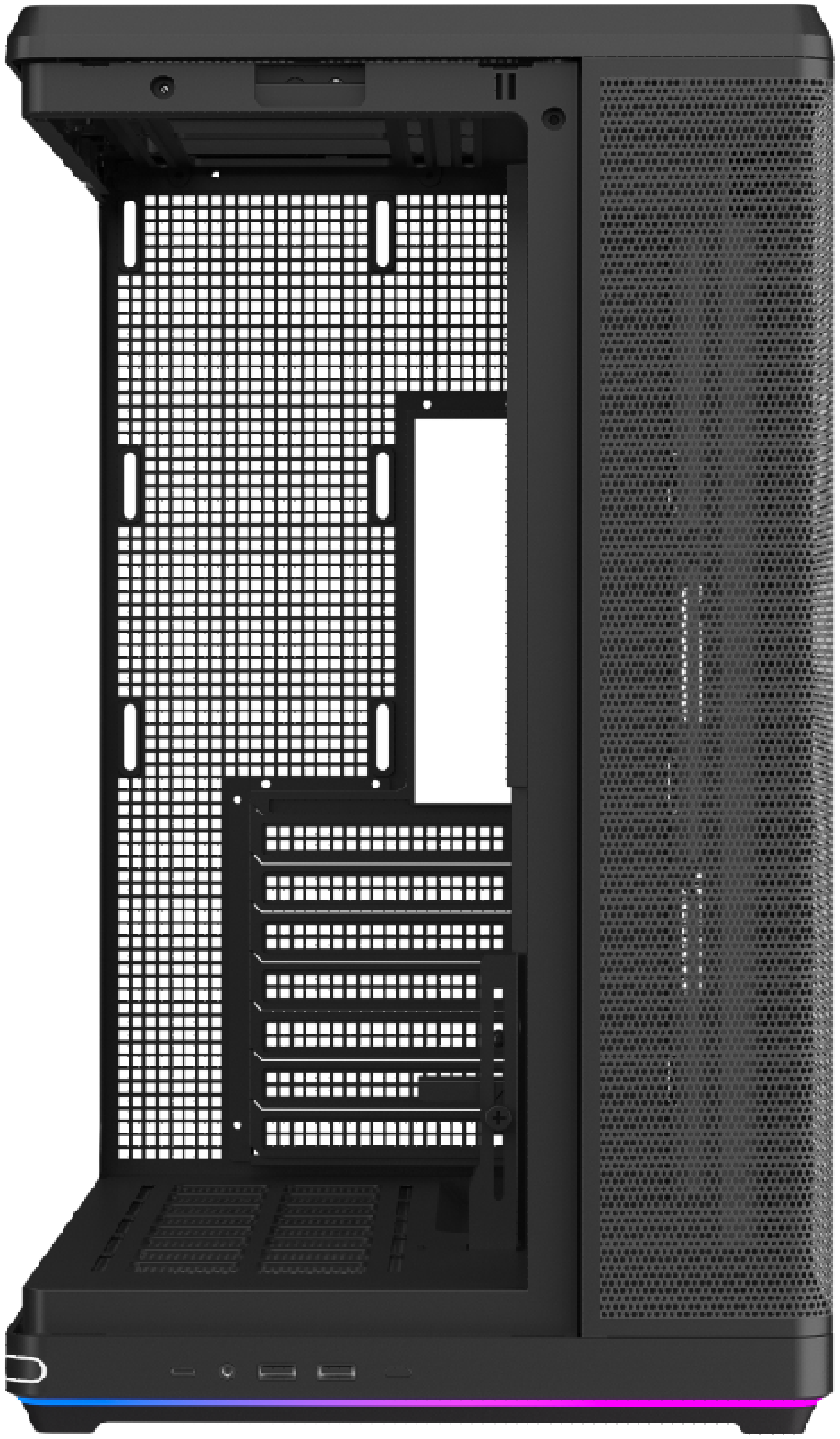

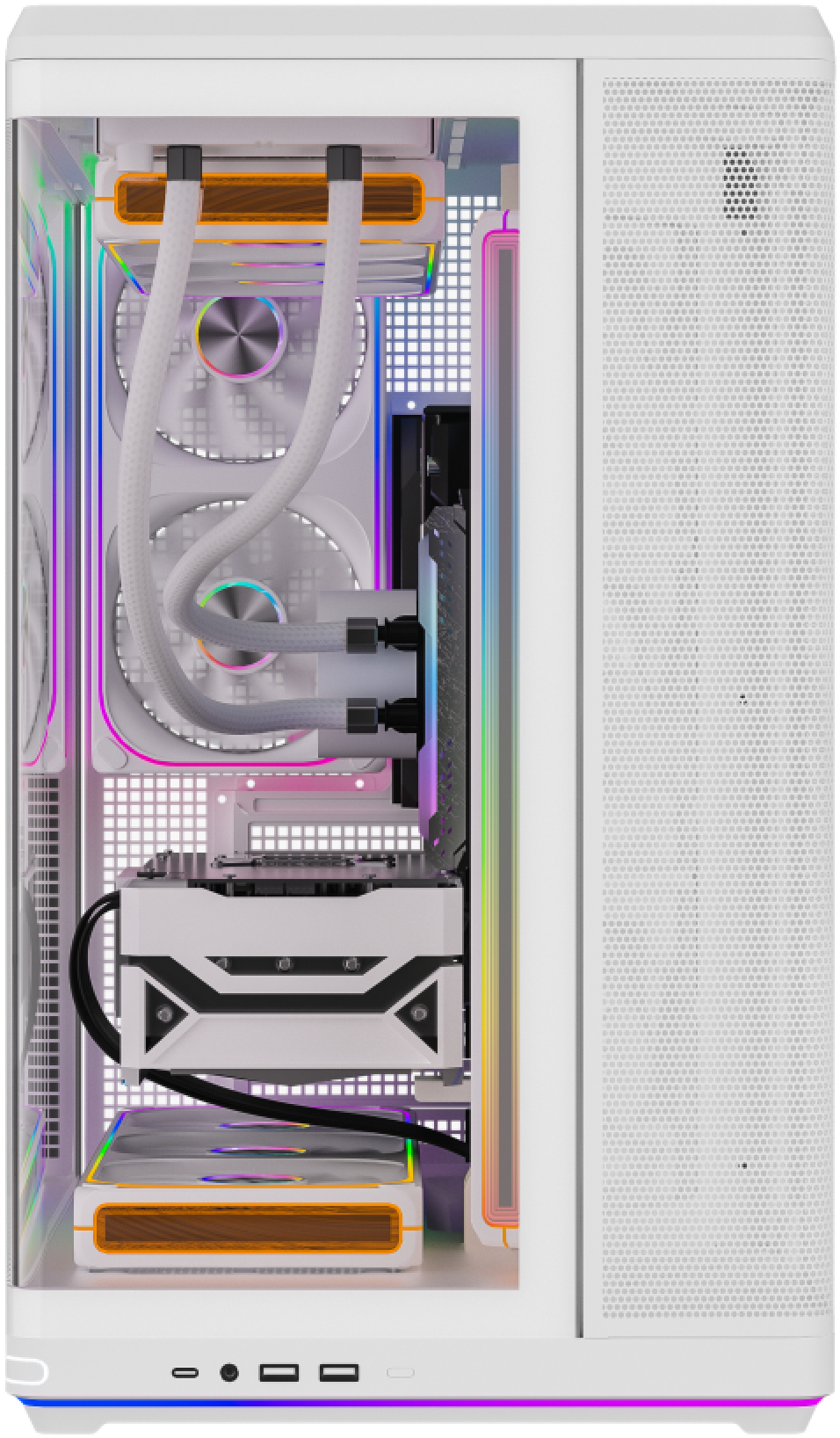

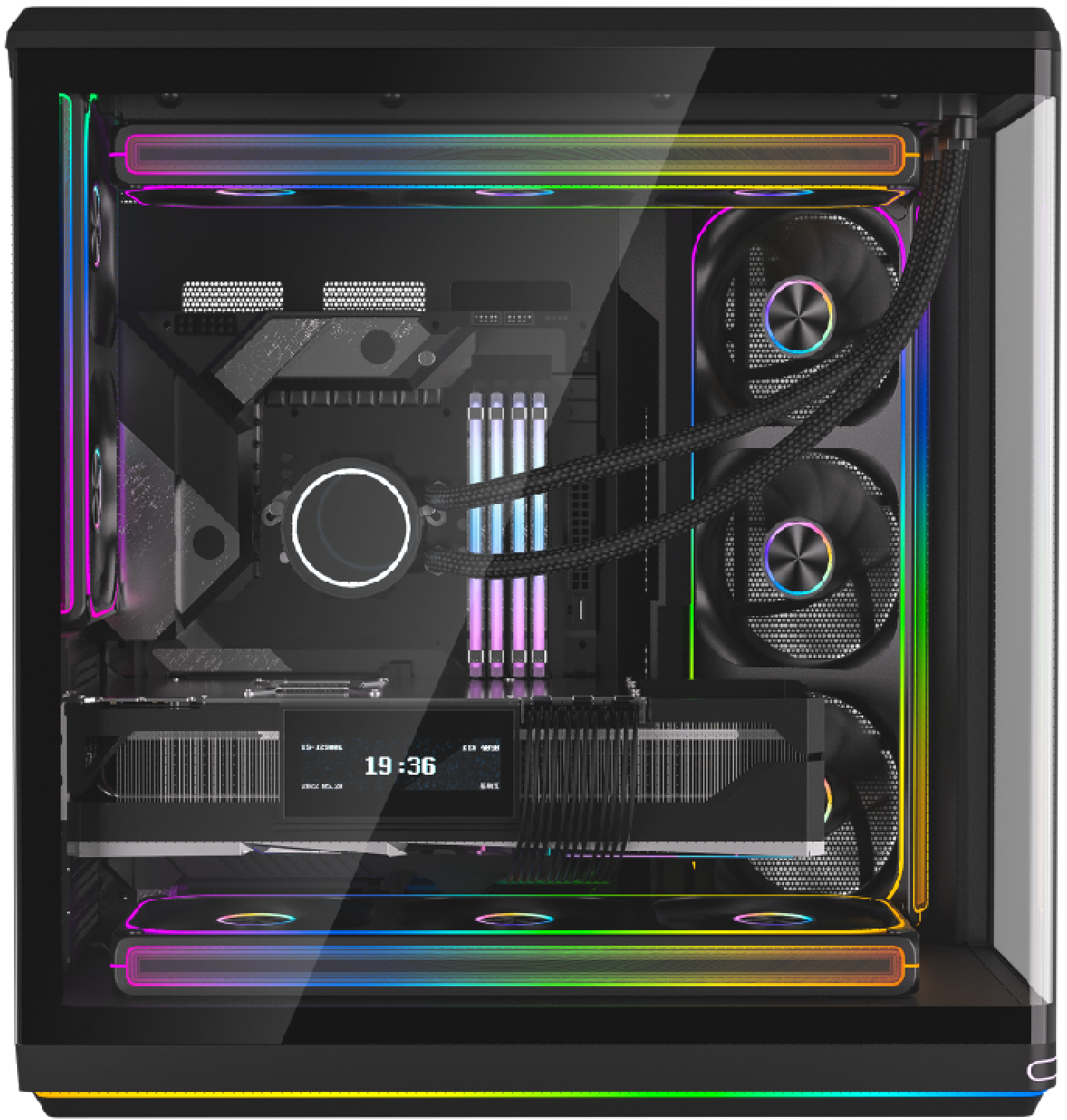

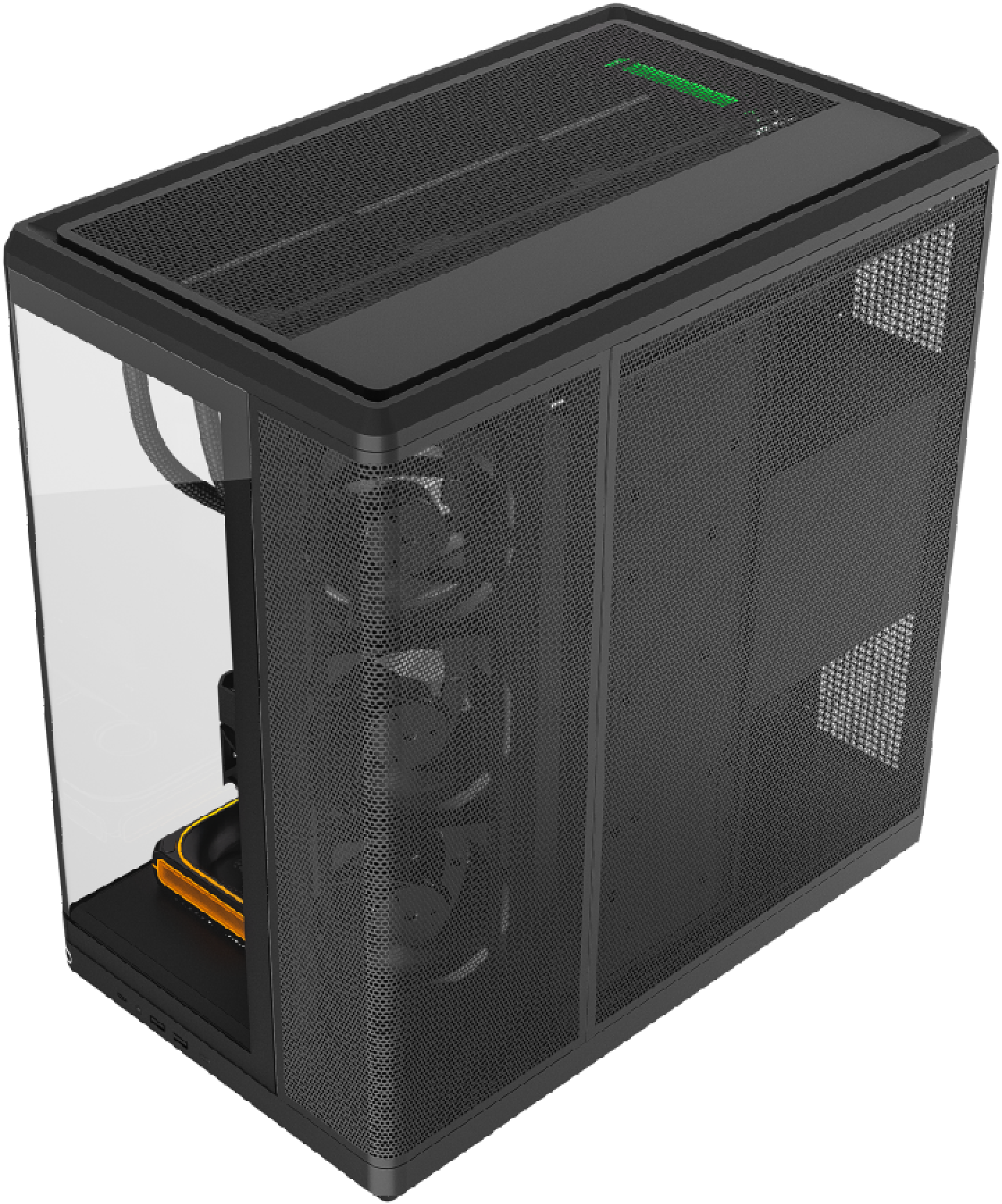

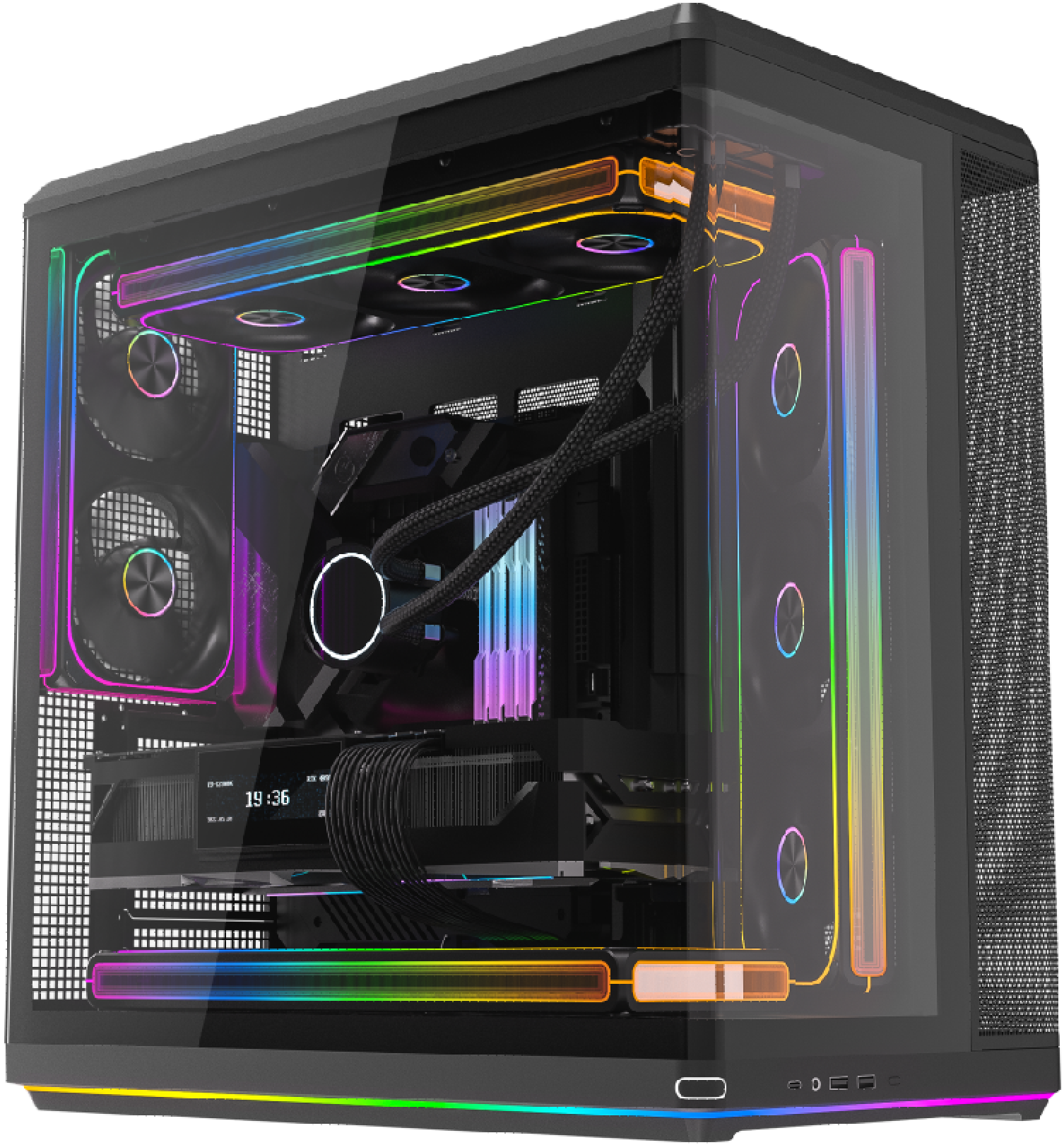

AW Series · Back-Connect Fishtank

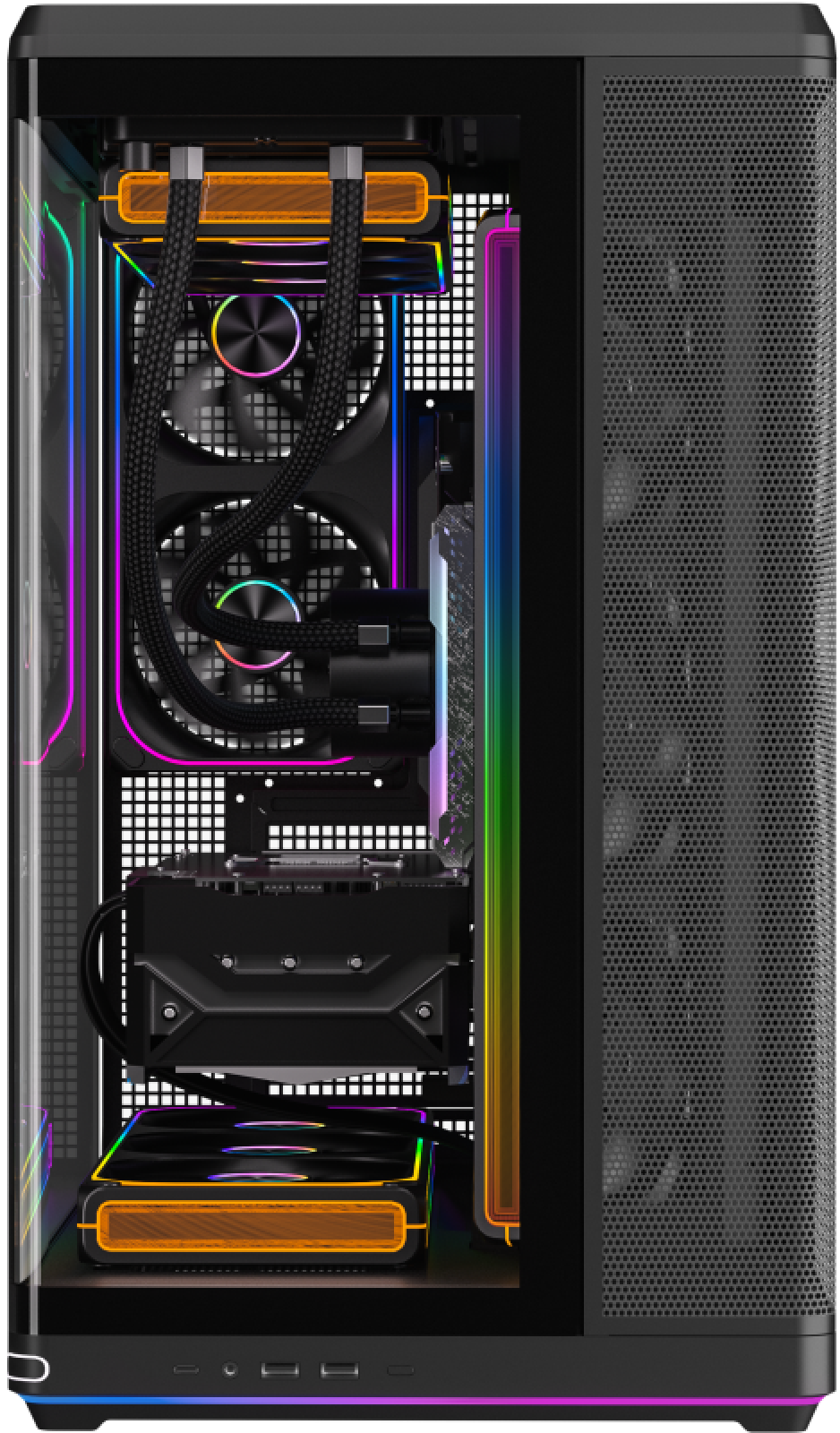

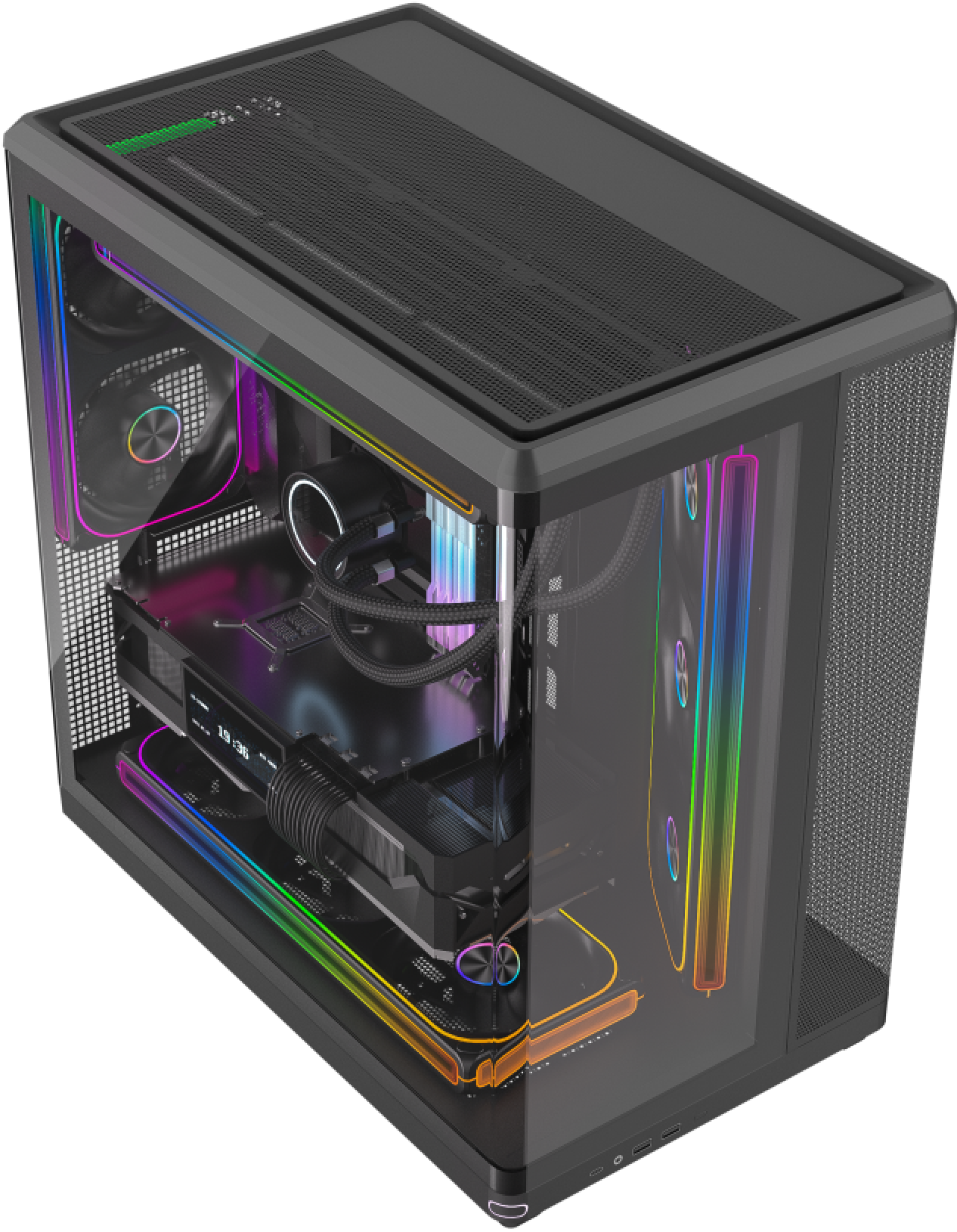

Installed components and illuminated fans shown in product images are for configuration reference and are not included unless specified in the quotation.
Full Specifications
- Case type
- Panoramic back-connect ATX case
- Motherboard
- ATX / Micro-ATX / Mini-ITX; supports back-connect motherboards
- Structure size
- 441 × 285 × 439mm
- Assembled size
- 460 × 285 × 487mm
- Material
- 0.75mm SPCC motherboard tray, side board, top cover, and rear plate; 0.65mm SPCC other metal parts; black coating
- Panels

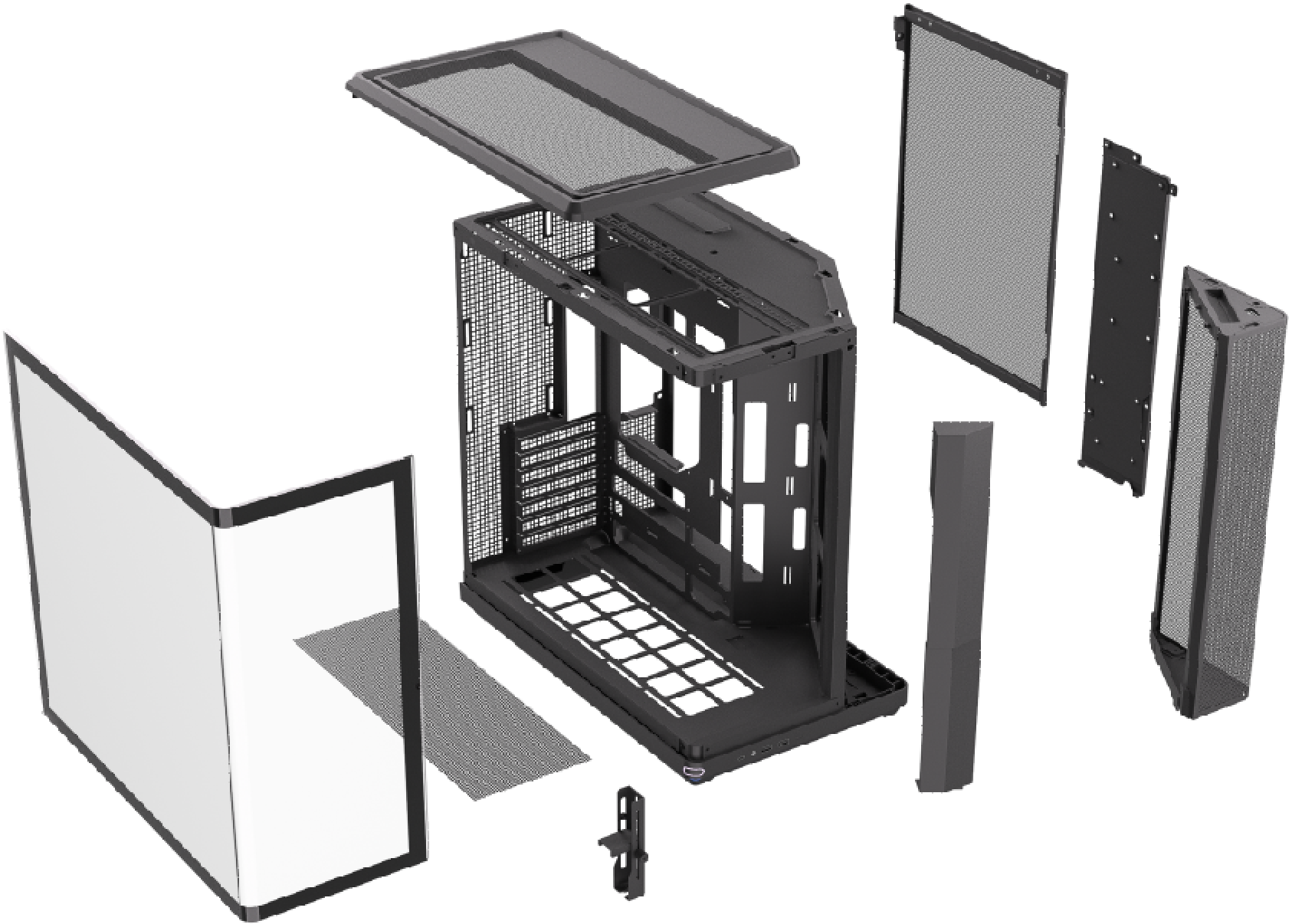

- Single-piece curved tempered glass with silk print; double-panel top cover; fast-detach side panels
- GPU clearance
- Up to 430mm
- CPU cooler
- Up to 163mm
- PSU support
- ATX up to 200mm; PS2 optional
- Expansion slots
- 7 standard PCI slots
- Drive bays
- 1 × 3.5in + 3 × 2.5in; or 2 × 3.5in + 2 × 2.5in
- External bays
- None
- I/O
- 2 × USB 3.0, 1 × Type-C, HD Audio and microphone, Power
- Fan support
- Rear: 2 × 120mm; motherboard side: 3 × 120mm; top: 3 × 120mm or 2 × 140mm; bottom: 3 × 120mm
- Radiator support
- Top 240 / 360mm
- Cable routing
- 95mm rear cable-routing space

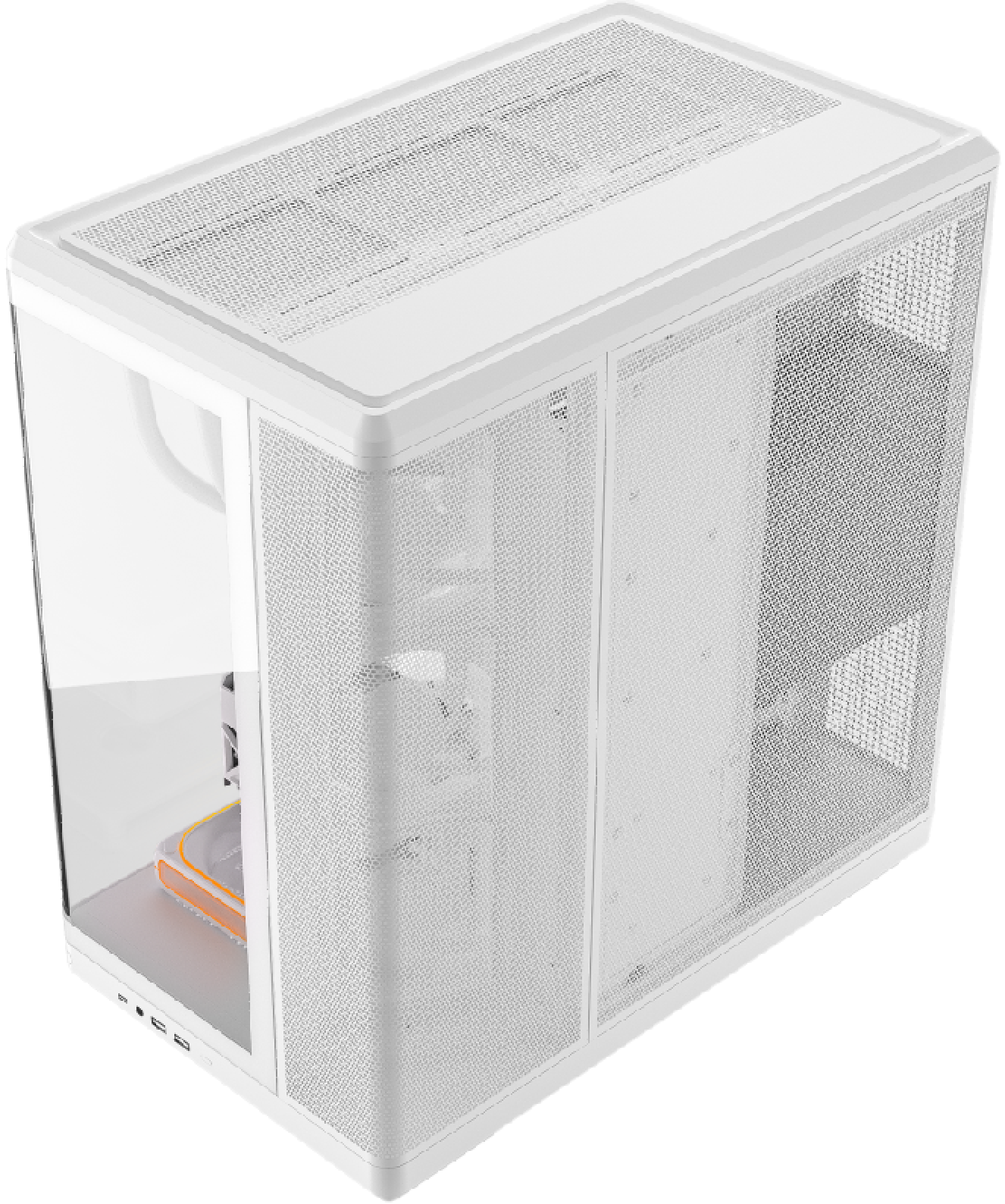

- Color options
- Black or full White
- MOQ
- 1 × 40HQ; black and white can be mixed; white option MOQ 300 pcs
- Packing
- 570 × 378 × 556mm K=K brown carton with EPE protection; 530 pcs / 40HQ
